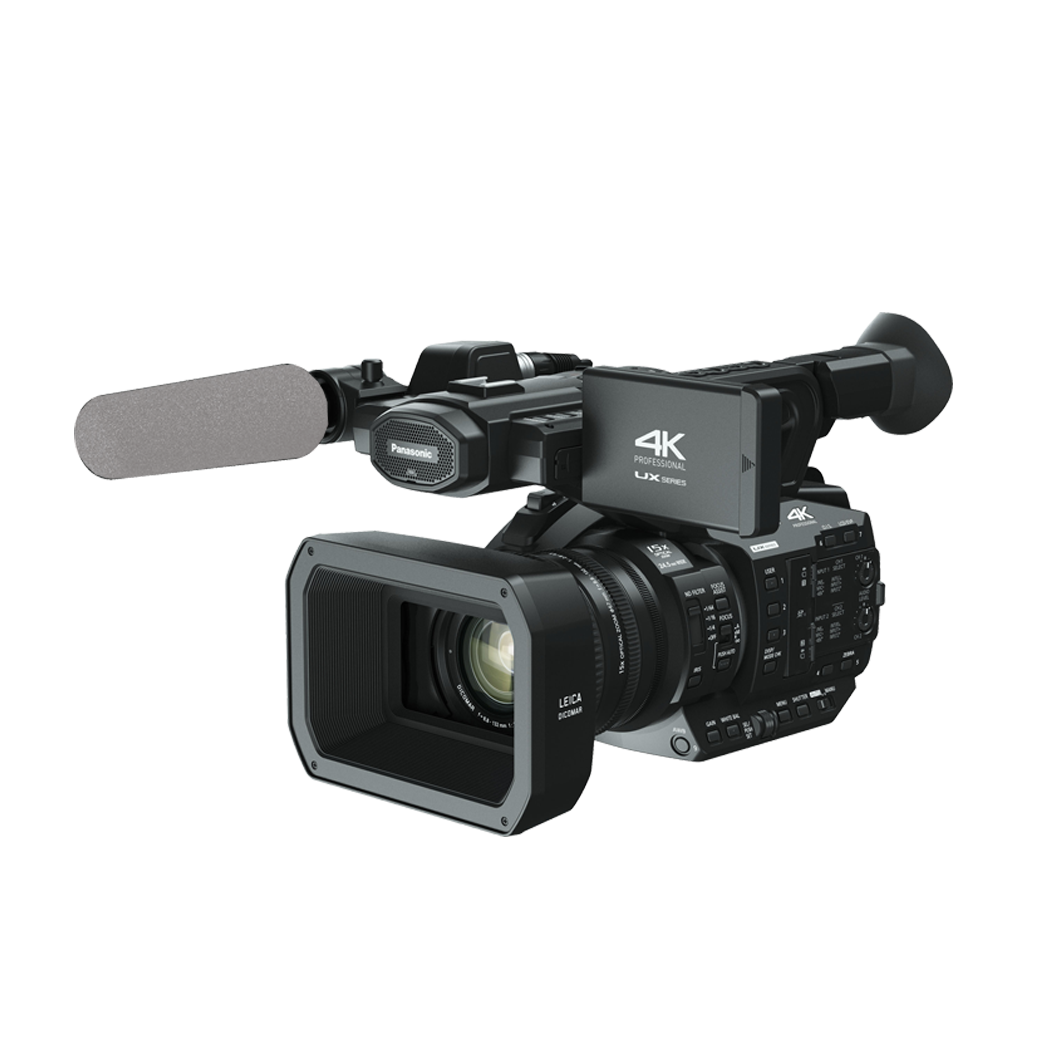

Panasonic AG-UX90 4K Camcorder - HDMI Out (50 Hz Model) ** สินค้าตกรุ่นแล้ว **

General

Power

DC 7.28 V (when the battery is used)

DC 12 V (when the AC adaptor is used)

Power Consumption

12.2 W (when the LCD monitor is used)

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Operating Humidity

10 % to 80 % (no condensation)

Weight*1

Body: Approx. 1.9 kg (4.19 lb) (body only, excluding lens hood, battery, and accessories)

Shooting: Approx. 2.3 kg (5.07 lb) (including lens hood, battery, and eye cup)

Dimensions*1

169 mm (W) x 195 mm (H) x 340 mm (D) (6-21/32 inches x 7-11/16 inches x 13-3/8 inches)

(excluding protrusion and eye cup)

169 mm (W) x 195 mm (H) x 382 mm(D) (6-21/32 inches x 7-11/16 inches x 15-1/32 inches)

(including eye cup, excluding protrusion)

Camera Unit

Pickup Device

1.0-type MOS solid state image sensor

Effective Pixels

17.78 megapixel

FHD 50.00p/25.00p

8.59 megapixel

UHD 25.00p

Lens

Optical image stabilizer lens, optical 15x motorized zoom

F2.8 to F4.5 (f=8.8 mm to 132 mm)

35 mm equivalent:

f=24.5 mm to 367.5 mm: FHD 50.00p/25.00p

f=35.4 mm to 531.0 mm: UHD 25.00p

Filter Diameter

67 mm

ND Filter

4 Positions (OFF, 1/4, 1/16, 1/64)

Shortest Shooting Distance

(M.O.D.)

Approx. 1.0 m from the front lens

Gain Setting

L/M/H selector switch

Standard mode: 0 dB to 30 dB (Adjustable in 1 dB steps) (Automatic setting can be assigned to L/M/H)

Extended ON: -3 dB to 30 dB (Adjustable in 1 dB steps) (Automatic setting can be assigned to L/M/H)

33 dB and 36 dB switched (when assigning [S.GAIN] to the USER button)

Color Temperature Setting

ATW, ATW LOCK, Ach, Bch, preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)

Shutter Speed

50i/50p mode

1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec.,

1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.

25p mode

1/25 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec., 1/250 sec., 1/350 sec.,

1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.

Shutter Speed (Slow Shutter)

50i/50p mode

1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec., 1/25 sec.

25p mode

1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.

VFR Recording Frame Rate

25p mode

2, 12, 21, 23, 25, 27, 30, 37, 50 (fps)

Minimum Subject Illumination

1.1 lx (F2.8, Super Gain 36 dB, Manual slow shutter 1/25s)

Digital Zoom

2x/5x/10x,

i.Zoom: max. 25x (optical zoom + digital zoom)

Lens Hood

Hood with lens cover

Memory Card Recorder

Recording Media*2

SDHC memory card (4 GB to 32 GB), SDXC memory card (48 GB to 128 GB)

UHS-I supported

Recording Slot

Slot x 2

System Format

50 Hz

Recording Format

MOV, MP4, AVCHD

Recording Mode

Please see page the "Recording Format" table.

Recording Time

Please see the "Recording Time" table.

2 Slot Functions

Relay, Simultaneous

Still Picture Recording Mode

JPEG (DCF/Exif2.2)

Still Picture Recording

Motion Picture Playback:

8.3 M: 3840 x 2160 (16:9), 2.1 M: 1920 x 1080 (16:9), 0.9 M: 1280 x 720 (16:9)

Digital Video

Video Signal for External Output

8bit 4:2:2

Recording Video Signal

8bit 4:2:0

Video Compression Format

MPEG-4 AVC/H.264 High Profile (MOV/MP4/AVCHD)

Digital Audio

Sampling Frequency

48 kHz/16 bit 2 ch

Audio Signal Format

LPCM (MOV/MP4), Dolby Audio (AVCHD)

Headroom

12 dB

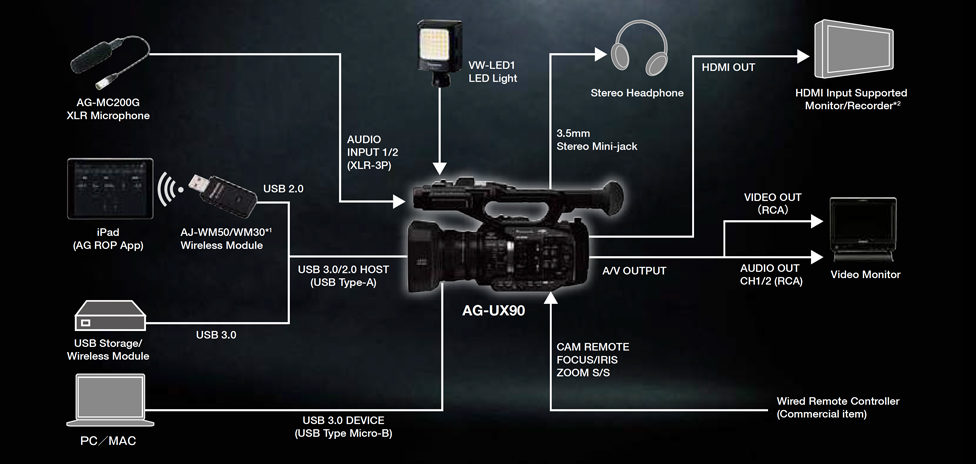

Video Input/Output

VIDEO OUT

VIDEO OUT connector x 1

HDMI

Type A connector x 1, VIERA Link not supported

Output format: 2160/25.00p, 1080/50p/25p/50i, 720/50p, 576/50p

Audio Input

Built-in Microphone

Stereo microphone

XLR Input

XLR (3-pin) x 2 (INPUT1, INPUT2)

high impedance, LINE/MIC/MIC+48V (switchable SW)

LINE: +4 dBu/0 dBu (switchable menu)

MIC: -40 dBu/-50 dBu/-60 dBu (switchable menu)

Audio Output

HDMI

2 ch (LPCM)

AUDIO OUT

AUDIO OUT x 2

Headphones

3.5 mm diameter stereo mini jack x 1

Speaker

20 mm diameter, round x 1

Other Input/Output

CAMERA REMOTE

2.5 mm diameter super mini jack x 1 (ZOOM S/S)

3.5 mm diameter mini jack x 1 (FOCUS IRIS)

USB3.0 HOST

Standard-A connector, 9-pin, external media device connection*3,bus power supported

USB 3.0 DEVICE

Micro-B connector, 10-pin, Mass storage function (read only)

DC IN 12V

DC 12 V (DC 11.4 V to 12.6 V), EIAJ type 4

Monitor/Viewfinder

LCD Monitor

3.5-type LCD monitor, Approx. 1,150,000 dots

Viewfinder

0.24-type EVF, Approx. 1,560,000 dots equivalent
