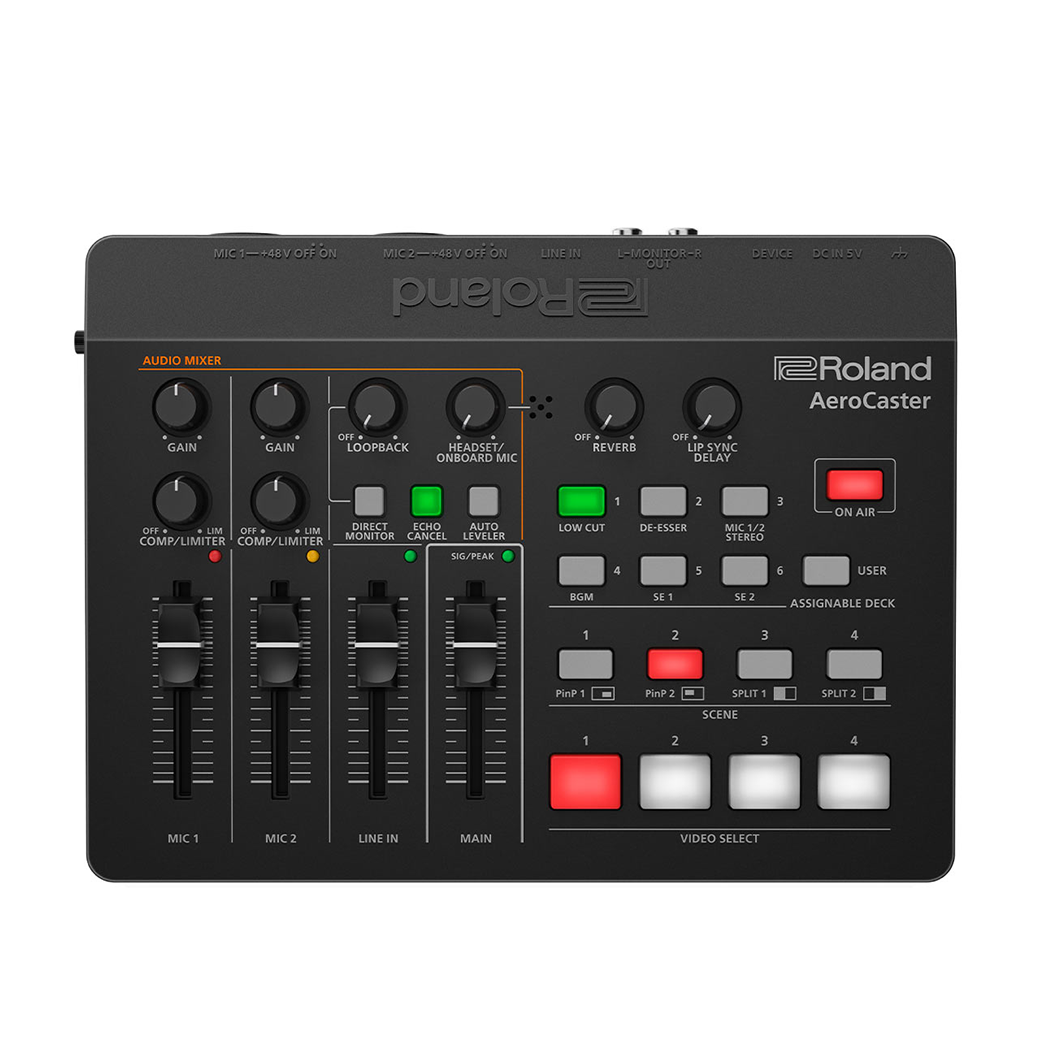

AEROCASTER VRC-01

Connectors

MIC 1, 2 jacks: Combo type (XLR, 1/4-inch TRS phone), balanced, phantom power (DC 48 V, 4 mA Max)

LINE IN jack: Stereo miniature type

MONITOR OUT jack: RCA phono type

PHONES/HEADSET jack: Stereo miniature type (Stereo, CTIA-type)

DC IN 5V port: USB Type-C (R)

DEVICE port: USB Type-C (R)



Controller

MIC 1 LEVEL fader

MIC 2 LEVEL fader

LINE IN LEVEL fader

MAIN LEVEL fader



MIC 1 COMP/LIMITER knob

MIC 2 COMP/LIMITER knob

MIC 1 GAIN knob

MIC 2 GAIN knob

LOOP BACK knob

HEADSET/ONBOARD MIC knob

REVERB knob

LIP SYNC DELAY knob

PHONES/HEADSET knob



MIC 1 +48V switch

MIC 2 +48V switch



Indicator

POWER

DEVICE

SIG/PEAK



Nominal Input Level

MIC 1, 2 jacks: -60 to +4 dBu (Maximum input level: +24 dBu)

LINE IN jacks: -10 dBu (Maximum input level: +10 dBu)



Input Impedance

MIC IN 1, 2 jacks: 10 k ohms (ANALOG GAIN < 24 dBu), 5 k ohms (ANALOG GAIN < 24 dBu)

LINE IN jacks: 15 k ohms



Nominal Output Level

MONITOR OUT jacks: -10 dBu (Maximum output level: +10 dBu)

PHONES/HEADSET jack: 15 mW + 15 mW (32 ohms load)



Output Impedance

MONITOR OUT jacks: 1 k ohms



Audio Effects

Delay, Reverb, HPF, Noise Gate, De-Esser, Compressor, Limiter



Power Supply

USB AC adaptor (commercially available)

* Recommended to use an USB AC adaptor that can supply 5V, 1.0 A or more.

USB Bus power



Current Draw

700 mA (AC adaptor)

500 mA (USB bus power)



Operation Temperature

+0 to +40 degrees Celsius

+32 to +104 degrees Fahrenheit



Dimensions

220(W) x 166(D) x 60(H) mm

8-11/16(W) x 6-9/16(D) x 2-3/8(H) inches



Weight (without cables)

600 g

1 lb 6 oz



Accessories

Leaflet "Read Me First"

USB Type-C to Lightning cable

USB Type-C to USB Type-A cable



* 0 dBu = 0.775 Vrms









AEROCASTER LIVE

Video Input

Satellite camera

Browser source

Built-in camera (iPad).

* 5 inputs in total

* Satellite cameras can be used with AeroCaster Camera or Web browser.

* Need to install the “AeroCaster Camera” App on your iPhone and Android Phone.

* “Browser source” use PC or mobile devices (iOS, Android OS) via Google Chrome web browser.

* Codec:H.264 Bitrate:Up to 20Mbps



Video Processing

RGB 4:4:4, 8-bit

1080/60p

* Depends on iPad internal processing

* Video input will be converted automatically.



Input Formats

Up to 1080/30p

* Automatically adjusts resolution and frame rate according to network bandwidth.



Output Formats

Up to 1080/60p

* Reccommend Apple USB-C Digital AV Multiport Adapter or Apple Lightning-Digital AV Adapter.



Still image and video and audio playback

Up to 100.

* Use still images and videos saved in the iPad.

* File format conforms to iOS Photo Library.

* PNG alpha channel supported.

* Support mp4(aac), m4a(aac), mp3, wav as audio source.



Scene

Up to 30.

* Text, Media (Overlay), PinP, SPLIT, QUAD are either can be registered.



Video Effects

Transition: CUT, MIX (DISSOLVE), WIPE

DSK (overlay): Text, Media

Composition: PinP, KEY (Luminance Key, Chroma Key), Simple telop function

* PNG alpha channel composition supported



Audio Processing

Sampling Rate: 24 bits, 48 kHz



Streaming Platform

YouTube Live

Facebook Live

Twitch

* Custom RTMP supported



Recording

Format : MP4 (H.264/AAC)

Bitrate : 1Mbps～10Mbps



Other Functions

(Zoom, Exposure, White Balance, Focus, LED Light, Stabilization)

* Depends on smart phone or tablet



OPERATING CONDITIONS

AeroCaster LIVE (for iPad)

Operating System:

iOS 14 or later

CPU:

Apple A12 processor or better (A12Z or better is recommended)

AeroCaster Camera (for iPhone, iPad)

Operating System:

iOS 13 or later

CPU:

Apple A10 processor or better (iPhone 7 or higher recommended)

AeroCaster Camera (for Android)

Operating System:

Android 10 or later

CPU:

Models with H.264 hardware encoder

Others:

Screen resolution 1280x720 or higher

Equipped with two or more cameras in front and rear

* Switching between 3 or more camera lenses is supported only for Xperia and Google Pixel series

* In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
