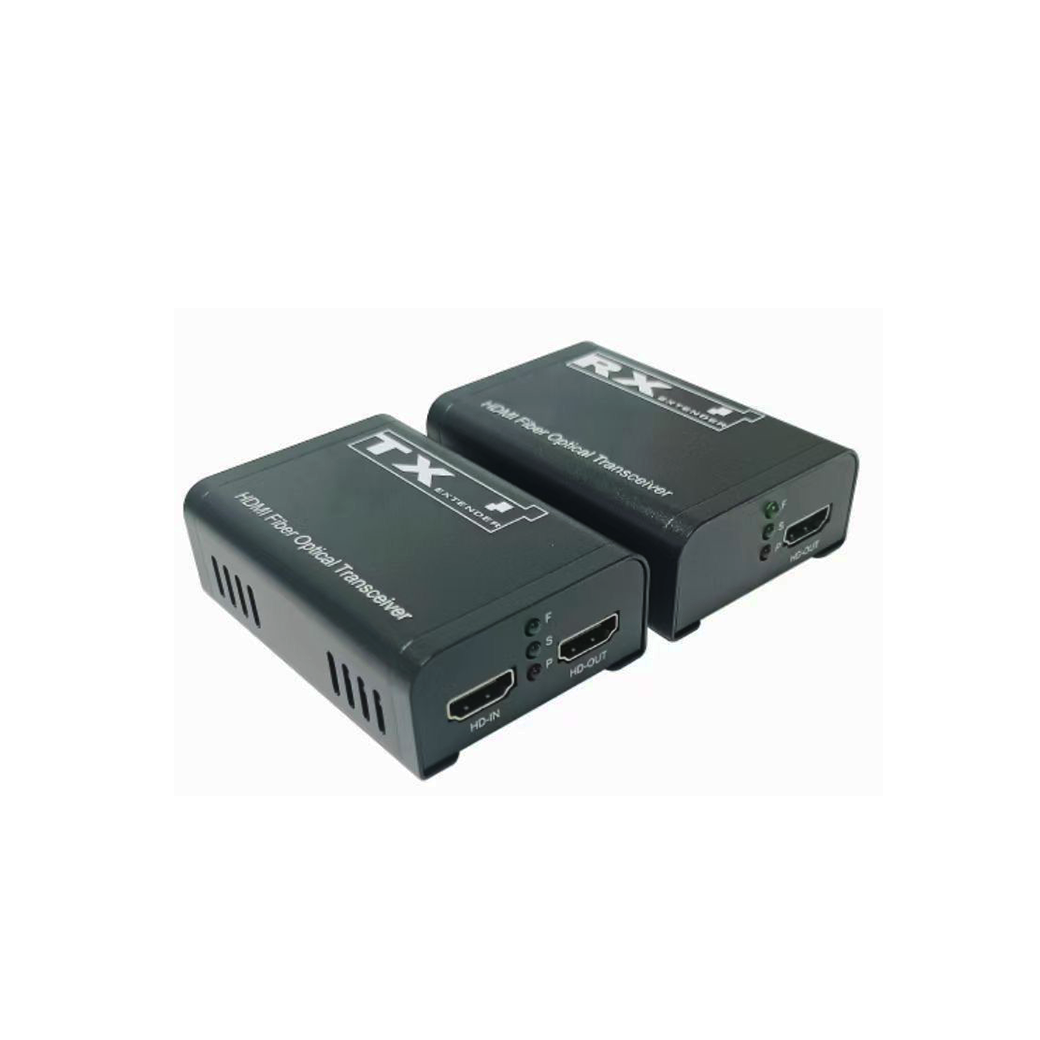

TECVAGON TVG-HTF03 HDMI Extender over Fiber

The extender TVG-HTF03 provides extension of HDMI signals long distances over a single Fiber, it supports loop output. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features

1. Transmits HDMI video and audio signals up to 3-20KM over a single Fiber(default 3KM)

2. Support video resolution up to 1920×1080P@60Hz, 1600×1200@60Hz3

3. Compliance with HDMI 1.3 and HDCP 1.2 standard

4. High compatibility, can auto-match source and display device

5. Built-in automatic adjustment system, make the image smooth, clear and stable

6. Built-in ESD protection system

7. Simple to install, plug and play

Installation Process

1. Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver

2. Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source

3. Connect the HDMI output port of receiver to the display device with HDMI cable, Connect the transmitter Fiber port to the receiver Fiber port using a single Optical fiber

4. Power on Transmitter and Receiver

Specification



















Package

1. HDMI transmitter x1 pcs

2. HDMI receiver x1 pcs

3. Power adapter x2 pcs

4. User manual x1 pcs
