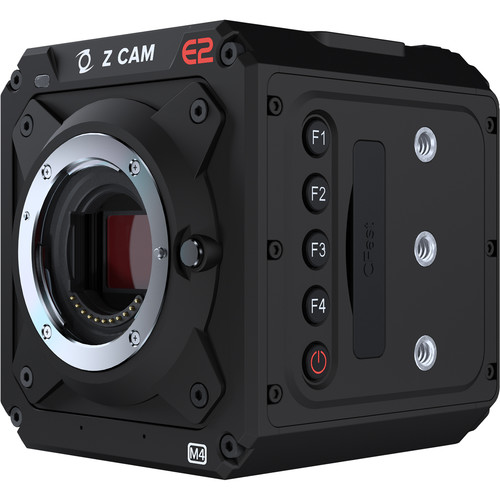

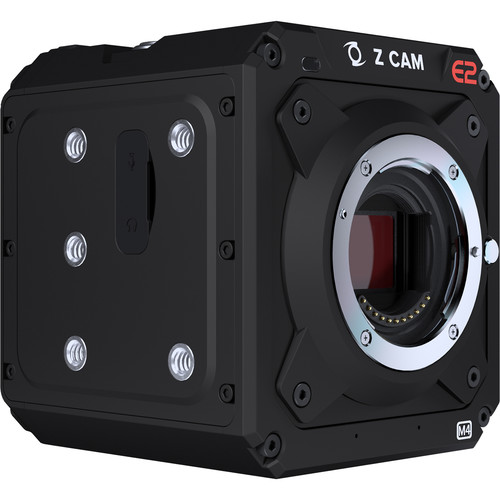

Z CAM E2-M4 Professional 4K Cinema Camera (Micro Four Thirds)

Image Sensor Size

17.3 x 13 mm (4/3")

Sensor Type

CMOS

Sensor Resolution

Actual: 10.28 MP

Color Filter

Bayer

Shutter Type

Rolling Shutter

ISO

160 to 25,600 (Native)

80 to 12,800 (Expanded)

Advertised Dynamic Range

13 Stops

Lens Mount

Micro Four Thirds

Lens Communication

Yes

Interchangeable Lens Mount

Yes

Built-In ND Filter

None

Built-In Microphone Type

Stereo

Recording Media

1 x CFast 2.0 Card Slot

Variable Frame Rates

Up to 120 fps

Recording Modes

ProRes 422HQ 4:2:2 10-Bit:

4096 x 2160p up to 30 fps

3840 x 2160p up to 30 fps

3696 x 2772p up to 30 fps

1920 x 1080p up to 100 fps

ProRes 422 4:2:2 10-Bit:

4096 x 2160p up to 48 fps

3840 x 2160p up to 60 fps

3696 x 2772p up to 48 fps

1920 x 1080p up to 120 fps

ProRes 422LT 4:2:2 10-Bit:

4096 x 2160p up to 60 fps

3840 x 2160p up to 60 fps

3696 x 2772p up to 60 fps

1920 x 1080p up to 120 fps

ProRes 422 Proxy 4:2:2:

4096 x 2160p up to 60 fps

3840 x 2160p up to 60 fps

3696 x 2772p up to 60 fps

1920 x 1080p up to 120 fps

H.265 10-Bit:

4096 x 2160p up to 23.98/24/25/29.97/50/59.94/120 fps (230 Mb/s)

3840 x 2160p up to 24/25/29.97/50/59.94/120 fps (230 Mb/s)

2696 x 2772p at 23.98/24/29.97/50/59.94 fps (230 Mb/s)

1920 x 1080p up to 23.98/24/25/29.97/50/59.94/240 fps (200 Mb/s)

H.264 8-Bit:

4096 x 2160p up to 23.98/24/25/29.97/50/59.94/120 fps (230 Mb/s)

3840 x 2160p up to 23.98/24/25/29.97/50/59.94/120 fps (230 Mb/s)

3696 x 2772p at 23.98/24/25/29.97/50/59.94 fps (230 Mb/s)

1920 x 1080p up to 23.98/24/25/29.97/50/59.94/240 fps (200 Mb/s)

Raw Output

HDMI In Raw Mode:

4128 x 2176

Video Connectors

1 x HDMI (HDMI 2.0) Output

Audio Connectors

1 x 1/8" / 3.5 mm Stereo Mic Level Input

1 x 1/8" / 3.5 mm Stereo Output

1 x 5-Pin LEMO Mic Level Input

Other I/O

1 x USB Type-C

1 x 10-Pin LEMO Sync

1 x 9-Pin D-Sub RS-232

1 x 2.5 mm LANC Control

1 x RJ45 LAN

Wireless Interfaces

2.4 GHz Wi-Fi

Display Type

LED

EVF

Optional, Not Included

Battery Type

Sony L-Series

Power Connectors

1 x 4-Pin LEMO (12 VDC at5 A) Input

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C
