MAIN SPECIFICATIONS

Number of input channels:

8 (XY mic capsule, 1-4, A, B)

Number of output channels:

1 (combined stereo headphone/line)

CONNECTORS

MIC IN:

ZOOM mic connector

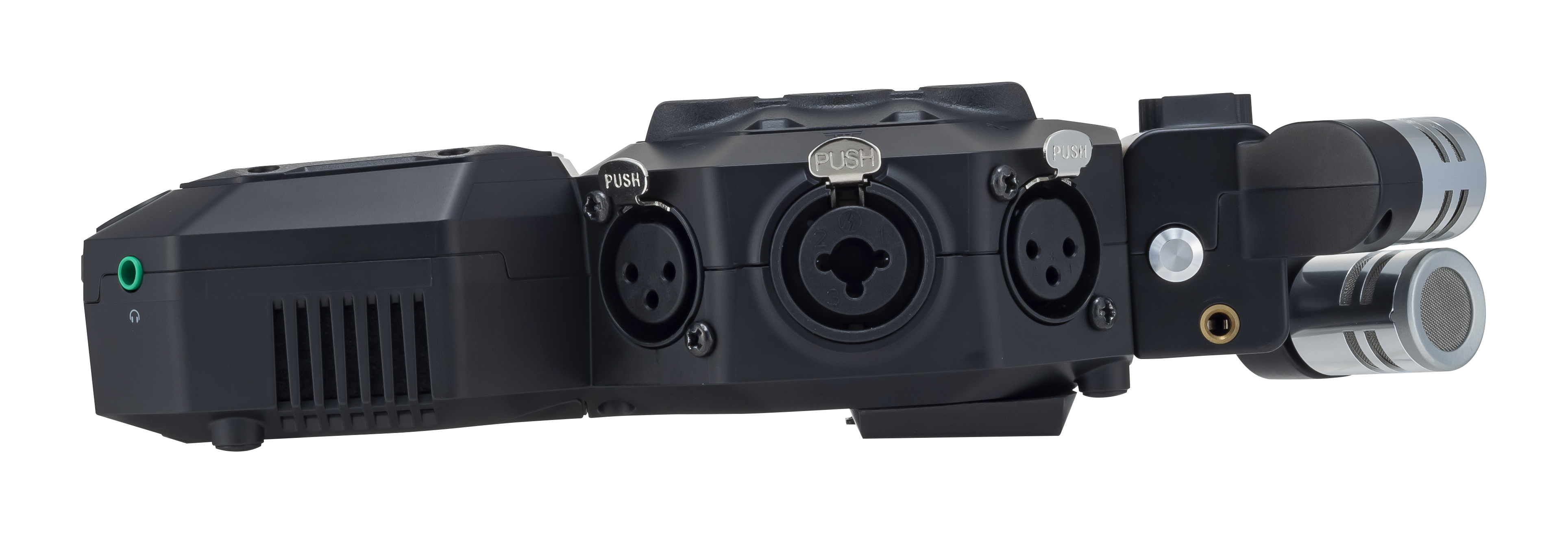

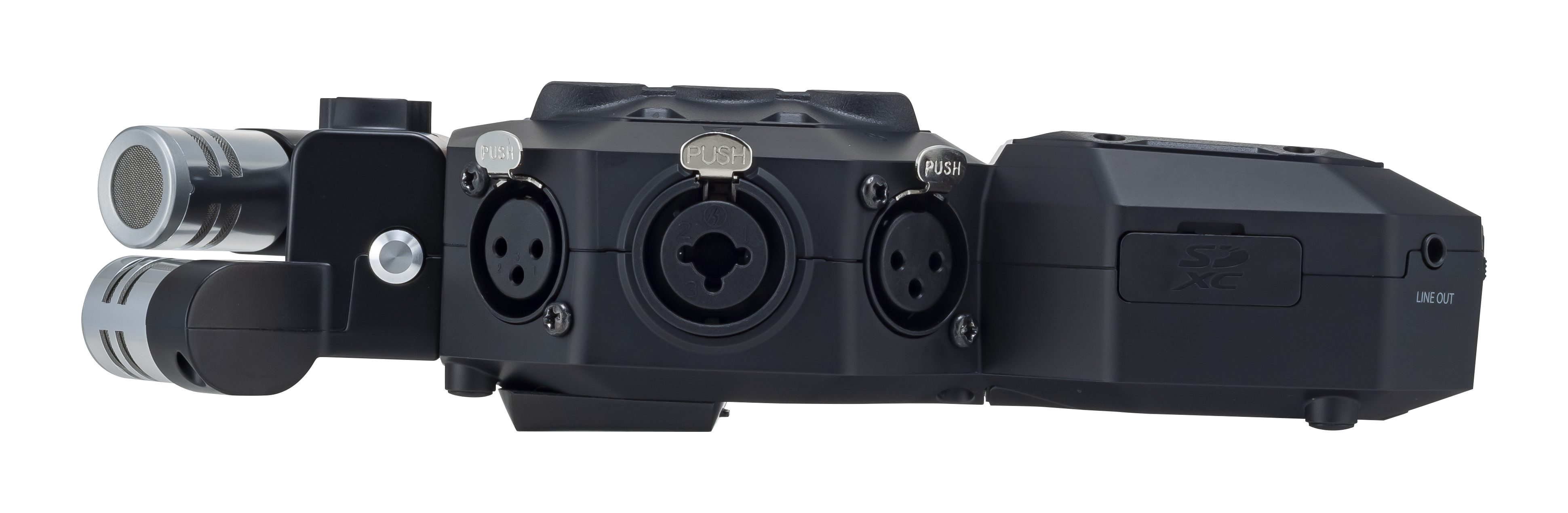

INPUT 1-4:

XLR jacks (2: HOT)

INPUT A/B:

XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot)

USB:

USB Micro-B
(audio interface, mass storage and Guitar Lab connection functions)
Note: Use a USB cable that supports data transfer.
Operation using USB bus power is possible.

REMOTE:

ZOOM BTA-1 or other dedicated wireless adapter

LINE OUT:

3.5 mm stereo mini

PHONE OUT:

3.5 mm stereo mini

PHANTOM POWER

+24 V/+48 V (independent ON/OFF for INPUTS 1–4, A
and B)

RECORDER

Recording media:

Cards that support SD/SDHC/SDXC specifications

Formats:

WAV: 44.1/48/96 kHz, 16/24-bit, mono/stereo
MP3: 128, 192, 320 kbps

Maximum simultaneous recording tracks:

12 (MIC IN, backup recording, 1-4, A, B, and LR)

AUDIO INTERFACE

Multitrack mode:

44.1/48/96 kHz, 16/24-bit, 12-in/2-out

Stereo mix mode:

44.1/48 kHz, 24-bit, 2-in/2-out

TUNER

Chromatic/Guitar/Bass/Open A/Open D/Open E/
Open G/DADGAD

Built-in speaker:

400 mW 8Ω mono speaker

Display:

2.4" (320×240) full-color touchscreen LCD

Power:

• 4 AA batteries (alkaline, NiMH or lithium)
• AC adapter (ZOOM AD-17): DC 5 V/1A
• USB bus power

External dimensions :

H8: 116.4 mm (W) × 163.3 mm (D) × 48.6 mm (H)
XYH-6: 78.9 mm (W) × 60.2 mm (D) × 45.2 mm (H)

Weight:

H8: 354 g
XYH-6: 130 g

Note: When using a USB cable designed for recharging, audio interface, SD card reader and Guitar Lab connection functions cannot be used.
