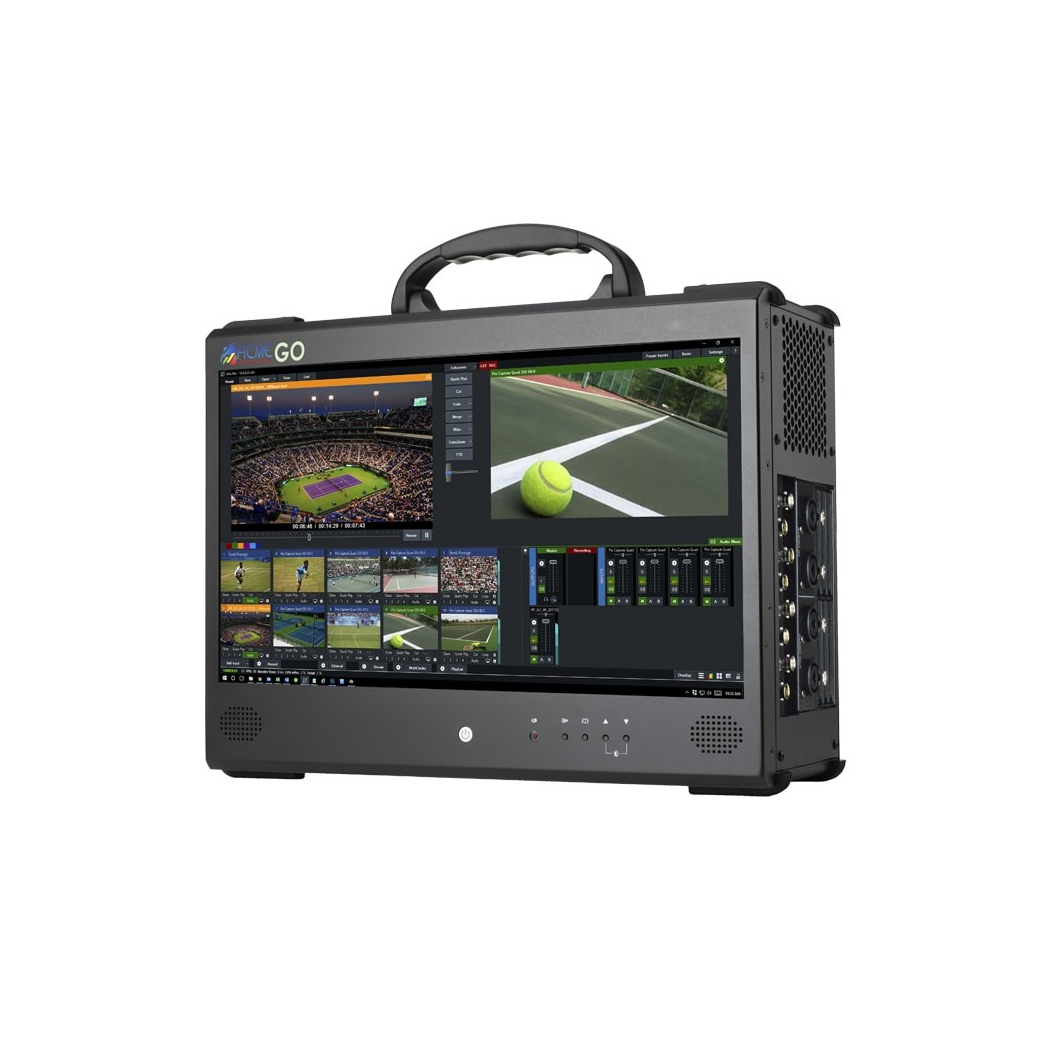

ACME Go 4/4

ACME Go 4/4K

ACME Go Plus

Video-Input/Output

4x 3G-SDI BNC Bi-directional input/out (AJA) +

4x HDMI type A input (Magewell)

Video Formats (4x3G SDI BNC)

525i 29.97 fps

625i 25 fps

720p 50,50.94, 60,

1080i 25, 29.97 & 30

1080PsF 23.98, 24, 25, 29.97, & 30 fps

1080P 23.98, 24, 25, 29.97, 30 ,50, 59.94, & 60 fps

4K (UHD) 23.98, 24, 25, 29.97, 30, 48, 50, 59.94 & 60 fps

2048x1080p 23.98, 24, 25, 29.97, 30, 48, 50, 59.95, & 60 fps

DCI 4K 23.98, 24, 25, 29.97, 30 , 48, 50, 59.94, & 60 fps

4 HDMI Inputs

Support input resolution up to 2048×2160 pixels

N/A

Audio I/O

2x Balanced Neutrik XLR/TRS combo jack audio inputs & outputs, 1/8" Stereo Line-in, 16-channel SDI embedded; compatible with USB (Focusrite, MOTU, M-Audio, etc.)

2x Balanced Neutrik XLR/TRS combo jack audio inputs & outputs, 1/8" Stereo Line-in, 16-channel SDI embedded; compatible with USB (Focusrite, MOTU, M-Audio, etc.)

2x Balanced Neutrik XLR/TRS combo jack audio inputs & outputs, 1/8" Stereo Line-in, 16-channel SDI embedded; compatible with

USB (Focusrite, MOTU, M-Audio, etc.)

Graphics Card

Intel® Core™ i7-9700K 12M Quad-Core

3.6 GHz /Intel® Z370 - Socket LGA 1151

Intel® Core™ i7-9700K 12M Quad-Core 3.6 GHz / Intel® Z370 - Socket LGA 1151

Memory

16GB Kit (2x8GB) DDR4-2666 Dual Channel Memory Architecture

Storage (O/S)

250GB NVMe M.2 System Operating Drive

250GB NVMe M.2 System Operating Drive

500GB NVMe M.2 System Operating Drive
512GB SSD Redundant Failover Drive
1TB SSD Video Storage Drive

1TB SSD Reply Drive

Expansion Bays

4x Removable Drive Bay Hotswap 2.5” SSD/HDD

4x Removable Drive Bay Hotswap 2.5” SSD/HDD

Graphics Processor

EVGA GeForce RTX 2070 GAMING 8GB GDDR6

Graphics Output Ports

3x Display Port

1x HDMI

* Preinstall USB Type-C for the ACME GO

monitor

3x Display Port

1x HDMI

* Preinstall USB Type-C for the ACME GO

monitor

3x Display Port

1x HDMI

* Preinstall USB Type-C for the ACME GO

monitor

Operating System

Windows 10 Home, 64-bit OEM

Optional: Window 10 Professional 64-bit (+$50)

Windows 10 Home, 64-bit OEM

Optional: Window 10 Professional 64-bit (+$50)

Windows 10 Professional, 64-bit OEM

USB Ports

4 USB 2.0 Ports (2 rear panel, 2 from internal header)

8 USB 3.0 Ports (6 rear panel, 2 from internal header)

4 USB 2.0 Ports (2 rear panel, 2 from internal header)

8 USB 3.0 Ports (6 rear panel, 2 from internal header)

Ethernet Port

1x Gigabit Ethernet (RJ45)

CD/DVD

Optional: USB Ultra Slim External DVD Drive (+$50)

Dimension

16.50”W x 13.62”H x 7.25”D

16.50”W x 13.62”H x 7.25”D

Weight (Net)

22 Kgs / 10 Kgs

22 Kgs / 10 Kgs

Display

17.3" Full HD 1920x1080 Resolution with LED Backlight
16:9 Widescreen aspect ratio / Brightness: 400 cd/m2 / Contrast Ratio: 600:1

17.3" Full HD 1920x1080 Resolution with LED Backlight
16:9 Widescreen aspect ratio / Brightness: 400 cd/m2 / Contrast Ratio: 600:1

17.3" Full HD 1920x1080 Resolution with LED Backlight
16:9 Widescreen aspect ratio / Brightness: 400 cd/m2 / Contrast Ratio: 600:1

Software compatibility

Works with vMix, Wirecast, LiveStudio

Works with vMix, Wirecast, LiveStudio

Works with vMix, Wirecast, LiveStudio
