จำหน่าย P-20HD Video Instant Replayer

Specs
VIDEOVideo Processing4:2:2 (Y/Pb/Pr), 8-bitInput ConnectorsINPUT 1--2: HDMI type A x 2
* Multi-format SupportedOutput ConnectorsMAIN: HDMI type A
* Multi-format Supported

PREIVEW: HDMI type AInput Formats720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p,
SVGA (800 x 600/60Hz), XGA (1024 x 768/60Hz),
WXGA (1280 x 800/60Hz), FWXGA (1366 x 768/60Hz),
SXGA (1280 x 1024/60Hz), SXGA+ (1400 x 1050/60Hz),
UXGA (1600 x 1200/60Hz), Full HD (1920 x 1080/60Hz),
WUXGA (1920 x 1200/60Hz
* The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).Output FormatsMAIN:
720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).

PREVIEW:
1080/59.94p, 1080/50p
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).

Still Image:
Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed. PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color, 8-bits alpha channel. * It can be stored up to 16 files in each Projects.Recording modeInstant Replay Mode
file format: MPEG2-TS
CODEC: H.264 Hight@L.4.1 10Mbps 8bit 4:2:0
AAC LC 128kbps, 48kHz, 16bit stereo
recording mode: resolution priority, framerate priority
* It can be selected at project settingsRecording mediaSD/SDHC/SDXC cardVideo EffectsComposition: PinP, SPLIT
Transition: CUT, MIX, WIPE
Other: Flip horizontal, Still Image Playback, Test pattern outputAUDIOAudio ProcessingSample rate: 24 bits/48 kHzAudio formatsLinear PCM, 24 bits/48 kHz, 2chInput ConnectorsINPUT 1--2: HDMI Type A x 2

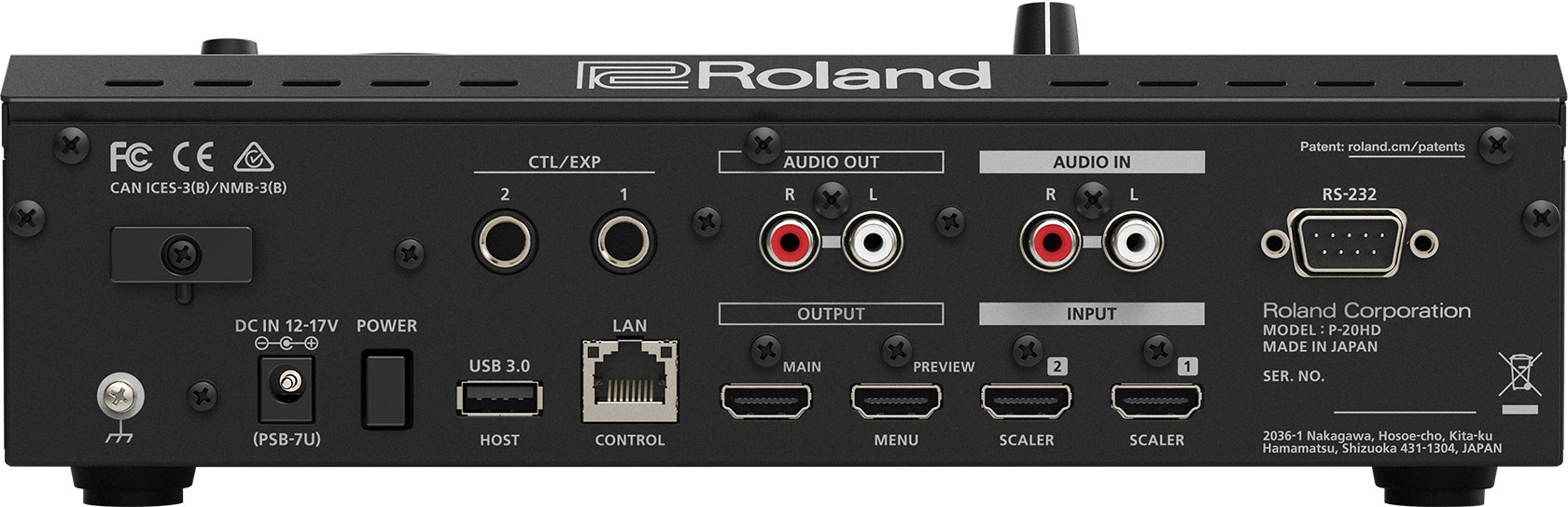

AUDIO IN: RCA phono typeOutput ConnectorsMAIN OUT: HDMI Type A
PREVIEW OUT: HDMI Type A
AUDIO OUT: RCA phono type
PHONES: Stereo 1/4-inch phone typeInput LevelAUDIO IN: -10 dBu (Maximum: +8 dBu)Input ImpedanceAUDIO IN: 15 k ohmsOutput LevelAUDIO OUT: -10 dBu (Maximum: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)Output ImpedanceAUDIO OUT: 1 k ohm
PHONES: 10 ohmsAudio EffectsEq, Delay, Limiter, Test tone outputAudio PlayerFile format: WAV (Linear PCM, 48kHz/48kHz, 16bit, stereo
* It can be stored up to 16 files in each Projects.OTHERSOther ConnectorsUSB HOST port: USB A type (For USB flash drive)
LAN port: RJ-45, 1000BASE-T (For remote control)
RS-232 connector: DB-9 type (Male, for remote control)
CTL/EXP 1, 2: 1/4-inch TRS phone type
DC INOther FunctionsPanel lock function
EDID EmulatorDisplay4.3 inches TFT Color LCD: 480 x 272 dotsPower SupplyAC adaptorCurrent Draw3 APower Consumption36 WOperation Temperature+0 to +40 degrees Celsius
+32 to +104 degrees FahrenheitDimensions265 (W) x 216 (D) x 87 (H) mm
10-7/16 (W) x 8-9/16 (D) x 3-7/16 (H) inchesWeight (excluding AC adaptor)2.1 kg
4 lbs 11 ozAccessoriesOwner's Manual
AC adaptor
Power cord

* 0 dBu = 0.775 Vrms
